Culvert Flumes

About Product

AquaDuct

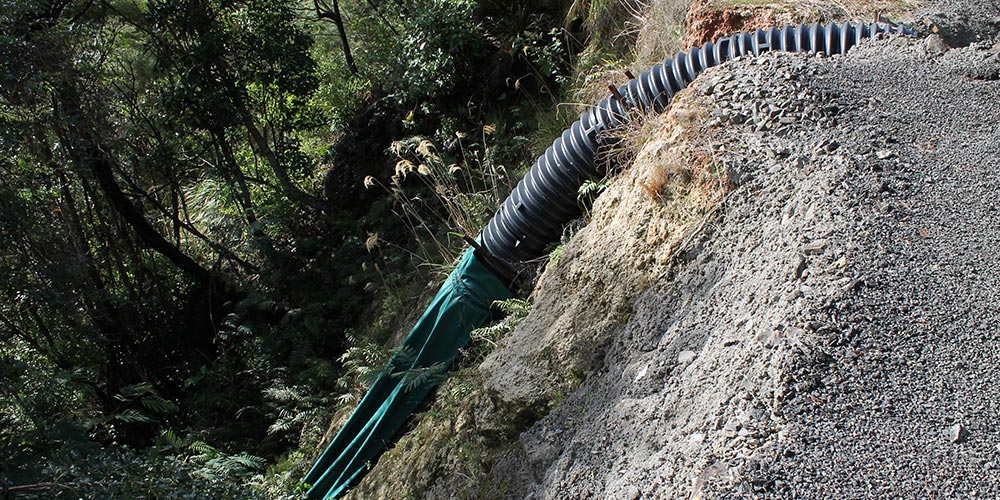

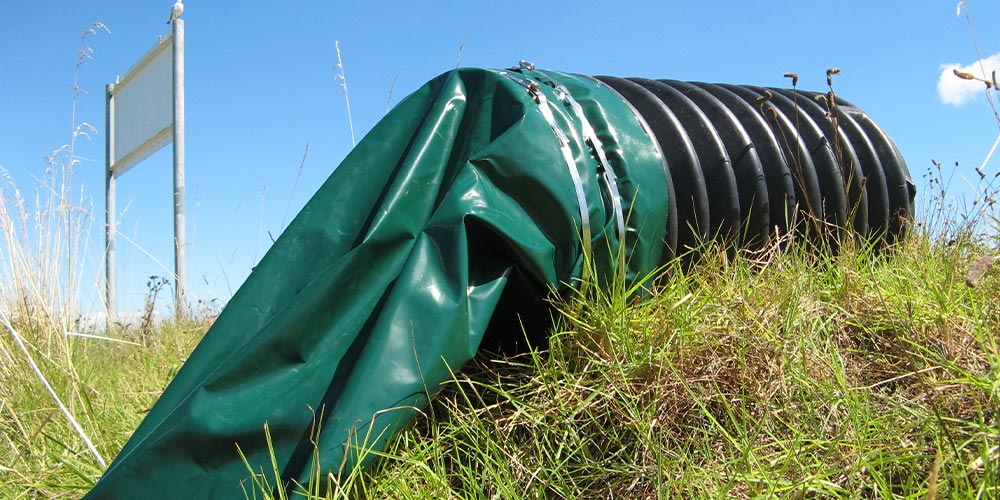

AquaDuct is an innovative, low cost solution to get water away from the end of culverts and prevent erosion around and under culverts. AquaDuct can be installed in long lengths where access is difficult to channel water to the base of steep slopes in a controlled way.

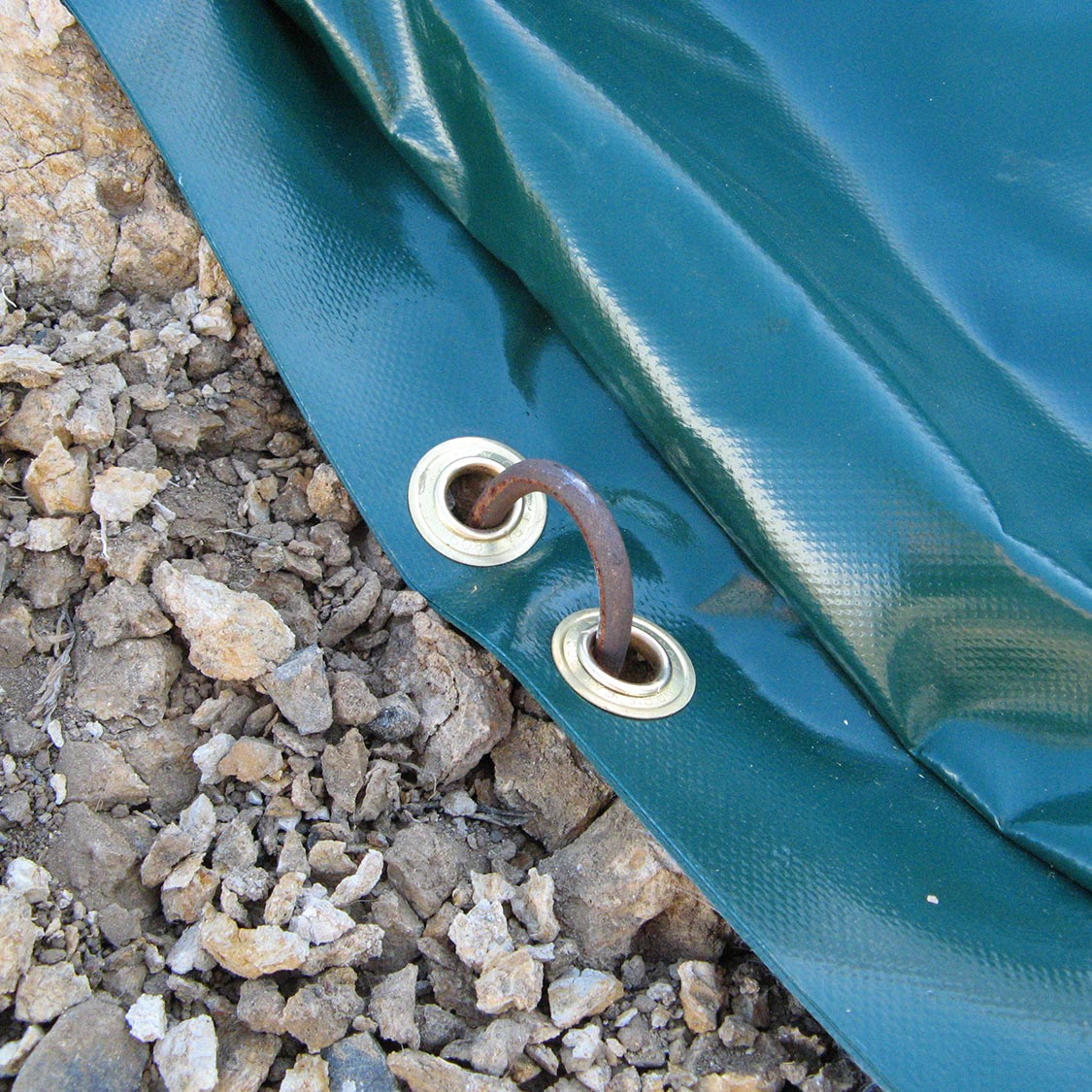

AquaDuct is available in single and double cleat. Double cleat adds strength and allows the product to be secured in both sides of the flume. This is recommended for long runs and large diameter flumes. AquaDuct has a unique double reinforced zone at the top to reduce tearing from pipe abrasion.

FlexiFlume

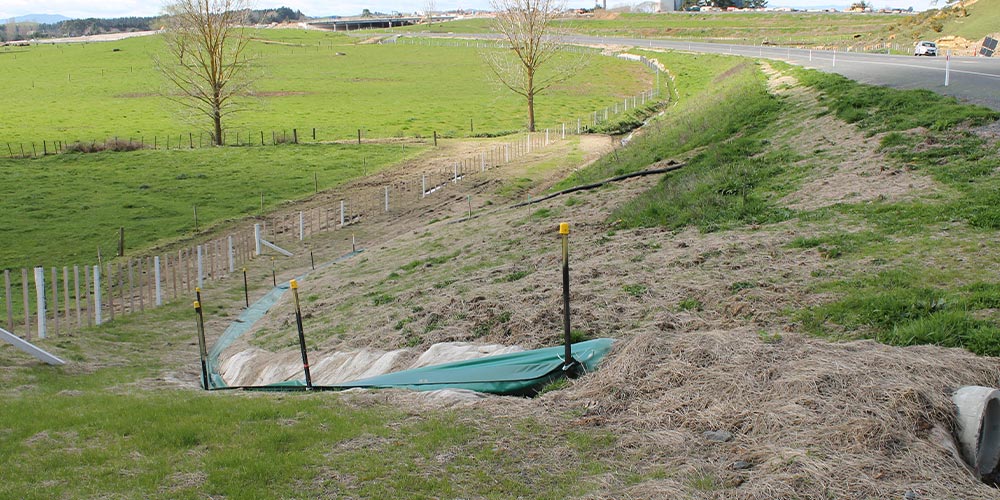

FlexiFlume is a lightweight sewn culvert flume manufactured from a reinforced PE material to provide a lightweight yet robust culvert flume for use around earthworks and construction sites. FlexiFlume is an innovative and cost-effective product to remove water in a controlled way from culverts, sediment pond outflows, stream diversions and many other applications around a site, preventing erosion and scour.

FlexiFlume is available with fixing loops on either one side or both, allowing the flume to be secured in place using steel Y posts preventing the flume being moved in the wind.

Product Gallery

Product Specs

Stainless steel straps to suit the different FlexiFlume and AquaDuct sizes are available to clamp onto pipes.

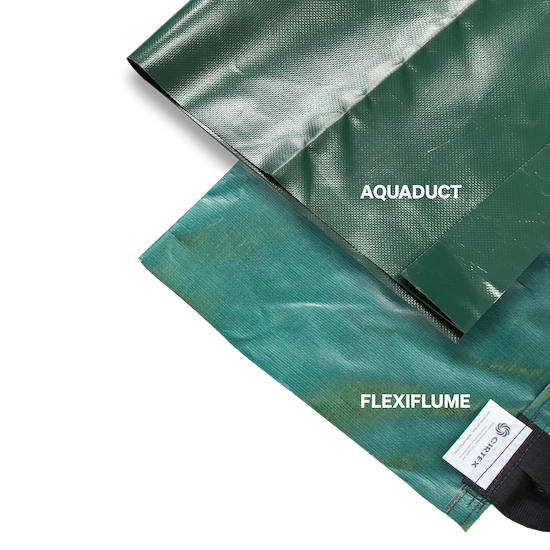

We recommend using AquaDuct for long term applications, and FlexiFlume for shorter term temporary works.

Code

Product

Size

76217

AquaDuct Single/Double Cleat (Length to suit)

225mm (OD 285mm)

Find a retailer

76219

AquaDuct Single/Double Cleat (Length to suit)

300mm (OD 370mm)

Find a retailer

76221

AquaDuct Single/Double Cleat (Length to suit)

375mm (OD 445mm)

Find a retailer

76223

AquaDuct Single/Double Cleat (Length to suit)

450mm (OD 535mm)

Find a retailer

76225

AquaDuct Single/Double Cleat (Length to suit)

525mm (OD 620mm)

Find a retailer

76227

AquaDuct Single/Double Cleat (Length to suit)

600mm (OD 715mm)

Find a retailer

76229

AquaDuct Single/Double Cleat (Length to suit)

675mm (OD 785mm)

Find a retailer

76231

AquaDuct Single/Double Cleat (Length to suit)

750mm (OD 865mm)

Find a retailer

76233

AquaDuct Single/Double Cleat (Length to suit)

825mm (OD 950mm)

Find a retailer

76235

AquaDuct Single/Double Cleat (Length to suit)

900mm (OD 1045mm)

Find a retailer

13425

FlexiFlume Single Loop

13426

FlexiFlume Single Loop

13427

FlexiFlume Single/Double Loop

13428

FlexiFlume Single/Double Loop

13429

FlexiFlume Single/Double Loop

13430

FlexiFlume Single/Double Loop

13431

FlexiFlume Single/Double Loop

Customised sizes available in single and double cleat and loops. All straps are custom made to suit the customers requirements.
