About Product

FilterSleeve is a tested and proven solution for protecting subsoil drains from sedimentation. Readily available, cost effective and proven to perform, FilterSleeve is your first choice for protecting perforated pipe subsoil drains.

It works by trapping the sand particles and assisting the formation of a soil filter around the pipe. This results in greatly improved permeability surrounding the pipe, giving greater flow of water into the drain system and almost total reduction of sediments settling in and reducing the drainage flow.

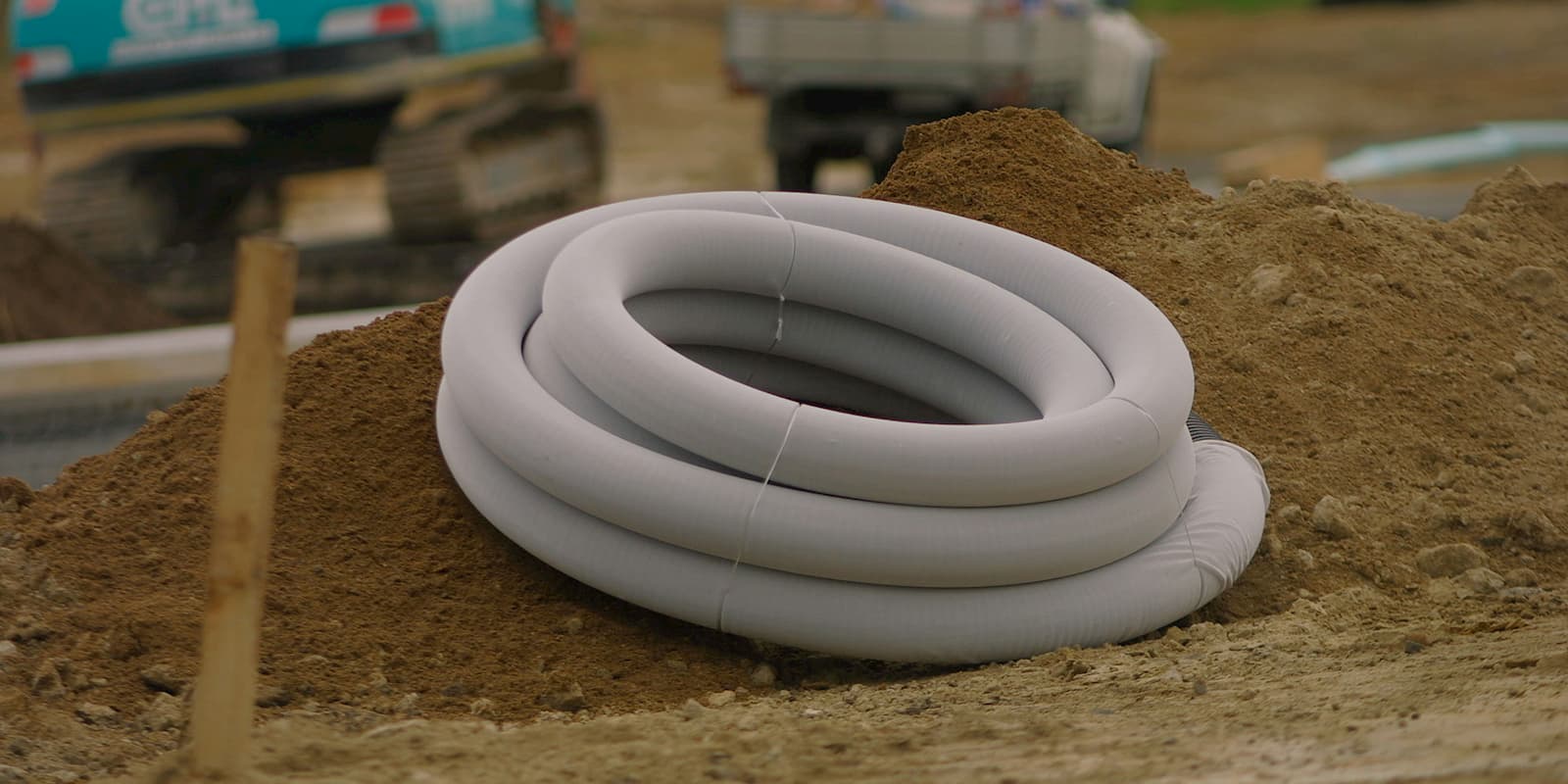

Fit to the pipeline on site using Preloaded Applicators or purchase from leading pipe manufacturers pre-installed.

Product Gallery

Easy Install Video

FilterSleeve is manufactured in New Zealand to strict quality control procedures, as the performance of the product is dependant on the accurate formation of the knit structure and pore sizes. Insist on Cirtex® FilterSleeve for proven results.

Product Specs

Manufactured as a three dimensional knitted fabric, FilterSleeve comes in a seamless length to fit a large range of pipe sizes.

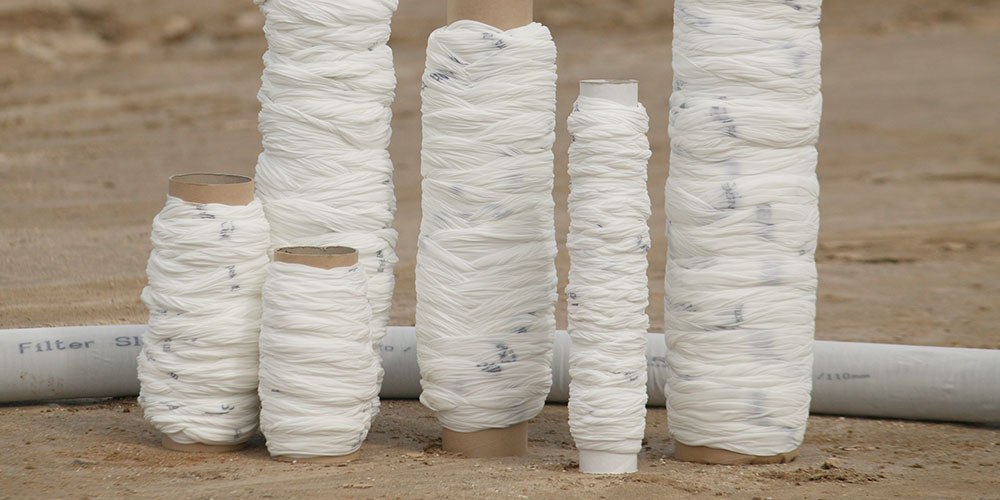

FilterSleeve is available in two ways – pre-loaded on cardboard applicators or in a roll by itself. Pre-Loaded FilterSleeve makes applying it to your pipe easy! Follow the steps in our Installation Guide for more info.






65mm x 10m

Find a retailer



110mm x 5m

Find a retailer



110mm x 10m

Find a retailer

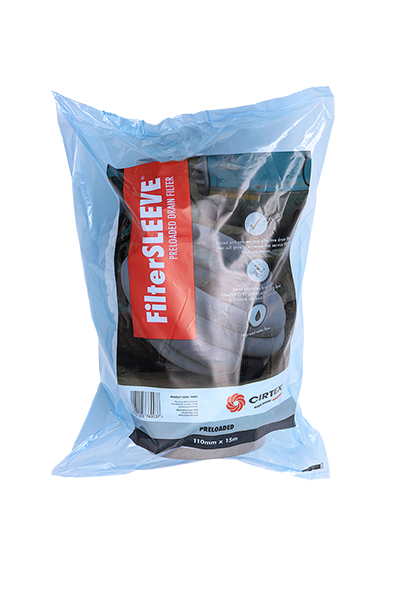

FilterSleeve Preloaded

65mm x 15m

Find a retailer


FilterSleeve Preloaded

65mm x 30m

Find a retailer


FilterSleeve Preloaded

110mm x 15m

Find a retailer


FilterSleeve Preloaded

110mm x 30m

Find a retailer


FilterSleeve Brochure

July 2021

FilterSleeve Install Guide

November 2022

FilterSleeve Data Sheet

July 2021

Frequently Asked Questions

It provides a filter for coarse silt/fine sandy particles which would ordinarily enter an unprotected subsoil drain.

It acts as a soil stabiliser to help support and maintain the surrounding soil and reduce the breakdown of that soil structure.

Heavier and larger sand particles are trapped by the pores of the FilterSleeve and bridge the fabric pores (as opposed to lodging in them as would ordinarily be expected).

The larger, irregular sand particles provide a further surface which can trap smaller (clay and silt) particles within their irregularities.

The air void created between the sleeve and the corrugated pipe helps to equalize pressure across the FilterSleeve fabric and provides a space into which water can pass freely before entering the pipe.

FilterSleeve helps to stabilise the surrounding soil by recreating a microscopic soil structure around the sleeve.

To protect a punched subsoil drain that is being used in sand or sandy gravels. FilterSleeve is an inexpensive insurance against failure should the contractor not achieve a perfect installation – 5-6% more expensive overall.

No – assuming that the FilterSleeve is correctly installed and backfilled, then Massey University research suggests that the permeability of the filter fabric is not significantly reduced over long periods of service.
