DuraGrid X geogrid
DuraGrid X is a biaxial geogrid that reinforces aggregate layers to create stronger, more stable foundations. It helps lock aggregate in place, reducing movement while improving the performance of pavements, driveways and working platforms.
- Material
- Polypropylene biaxial geogrid
- Grid Size
- 20/20 30/30 40/40
- Use
- Ground reinforcement
- Key Benefit
- Improves ground stability
Build stronger foundations from the ground up.
DuraGrid X is a high-strength biaxial geogrid designed to reinforce aggregate layers and improve ground stability. Positioned between the soil and aggregate, it locks the aggregate together to reduce lateral movement and create a stronger, longer-lasting foundation.
Ideal for driveways, pavements, working platforms and raft foundations, DuraGrid X helps reduce aggregate thickness while increasing the load-bearing performance of the finished surface. It can also be used as an anti-slip grid on steep steps, boardwalks and other smooth walking surfaces.
What you can use DuraGrid X for
Driveways and pavements
Working platforms
Raft foundations
Soft ground stabilisation
Parking areas
Anti-slip steps and boardwalks
- Material
- Polypropylene biaxial geogrid
- Grid Size
- 20/20 30/30 40/40
- Use
- Ground reinforcement
- Key Benefit
- Improves ground stability
- Roll Size
-
- 2m × 50m
- 3.95m × 50m
- 5.95m × 50m
- Application
- Pavements, driveways & foundations
| Code | Product | Size |
|---|---|---|
| 13639 | DuraGrid X 30/30 | 5.95m × 50m (297.5m2) |
| 76255 | DuraGrid X 40/40 | 3.95m × 50m (197.50m2) |
| 13976 | DuraGrid X 20/20 | 2m × 50m Roll |
| 76253 | DuraGrid X 20/20 | 3.95m × 50m Roll |
| 13643 | DuraGrid X 20/20 | 5.95m × 50m Roll |
| 76254 | DuraGrid X 30/30 | 3.95m × 50m Roll |
DuraGrid X reinforces aggregate layers beneath pavements, driveways and foundations. By locking aggregate together, it reduces movement and creates a stronger, more stable base.

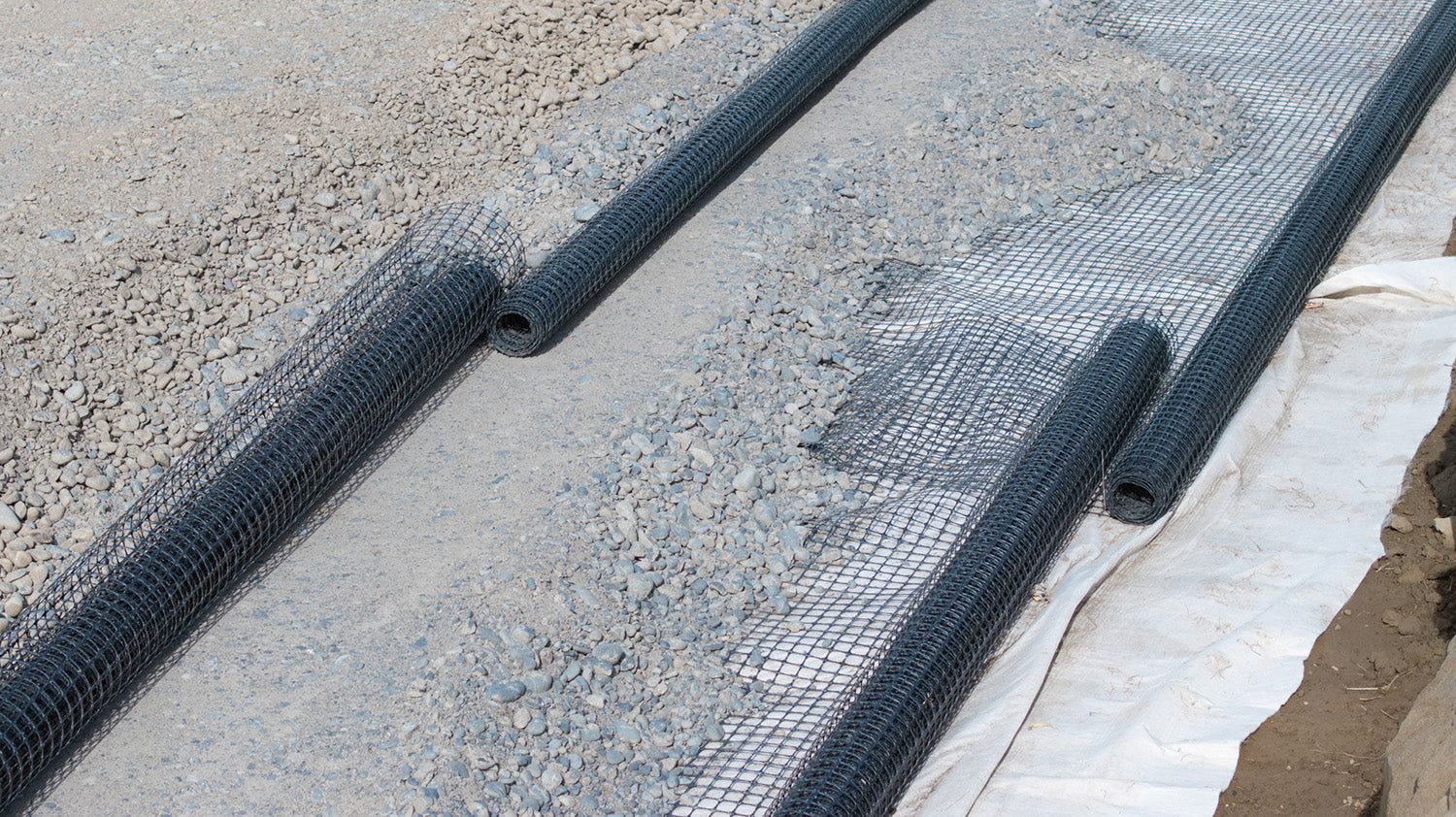

DuraGrid X is typically laid directly on the prepared subgrade before aggregate is placed and compacted over the top. Some applications may require multiple layers of geogrid and aggregate.
Yes. DuraGrid X is well suited to soft ground stabilisation. On saturated or very soft soils, it is recommended to install a non-woven geotextile such as SureTex beneath the geogrid to help separate the soil from the aggregate.
Yes. By reinforcing and stabilising the aggregate layer, DuraGrid X can help reduce the thickness of aggregate required while improving the performance and lifespan of the pavement.
Yes. In addition to ground reinforcement, DuraGrid X can be used as an anti-slip grid on steep steps, boardwalks and other smooth surfaces that may become slippery in damp conditions.
