FilterSleeve™
FilterSleeve is a tested and proven solution for protecting subsoil drains from sedimentation.
- Extends the service life of perforated drain systems by filtering out silt and sand
- Quick and easy to apply with a preloaded disposable applicator
- Material
- Circular knitted polyester
- Size
-
- 65mm × 10m
- 65mm × 15m
- 65mm × 30m
- 110mm × 5m
- 110mm × 10m
- 110mm × 15m
- 110mm × 30m
- 110mm × 50m
- 110mm × 100m
- 160mm × 45m
- Use
- Protects subsoil drains from sedimentation
- Key Benefit
- Extends the service life of perforated drains
About FilterSleeve™
FilterSleeve is a tested and proven solution for protecting subsoil drains from sedimentation. Readily available, cost effective and proven to perform, FilterSleeve is your first choice for protecting perforated pipe subsoil drains.
It works by trapping the sand particles and assisting the formation of a soil filter around the pipe. This results in greatly improved permeability surrounding the pipe, giving greater flow of water into the drain system and almost total reduction of sediments settling in and reducing the drainage flow.

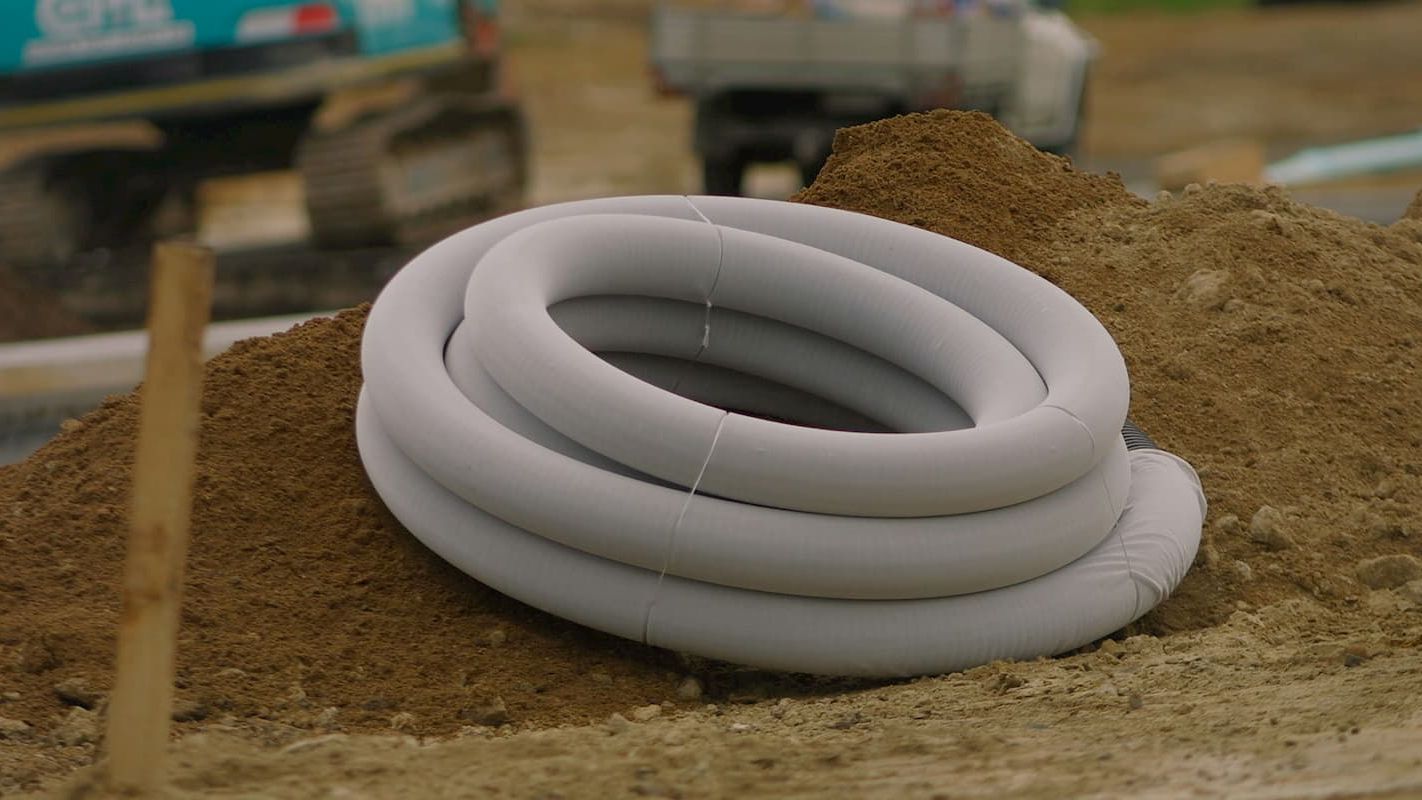

Fit to the pipeline on site using Preloaded Applicators or purchase from leading pipe manufacturers pre-installed.
- Material
- Circular knitted polyester
- Size
-
- 65mm × 10m
- 65mm × 15m
- 65mm × 30m
- 110mm × 5m
- 110mm × 10m
- 110mm × 15m
- 110mm × 30m
- 110mm × 50m
- 110mm × 100m
- 160mm × 45m
- Use
- Protects subsoil drains from sedimentation
- Key Benefit
- Extends the service life of perforated drains
- Application
- Subsoil drainage systems
- Compliance
- Meets Austroads Specification ATS 2285
| Code | Product | Size |
|---|---|---|
| 76131 | FilterSleeve | 65mm × 10m |
| 76132 | FilterSleeve | 110mm × 5m |
| 76133 | FilterSleeve | 110mm × 10m |

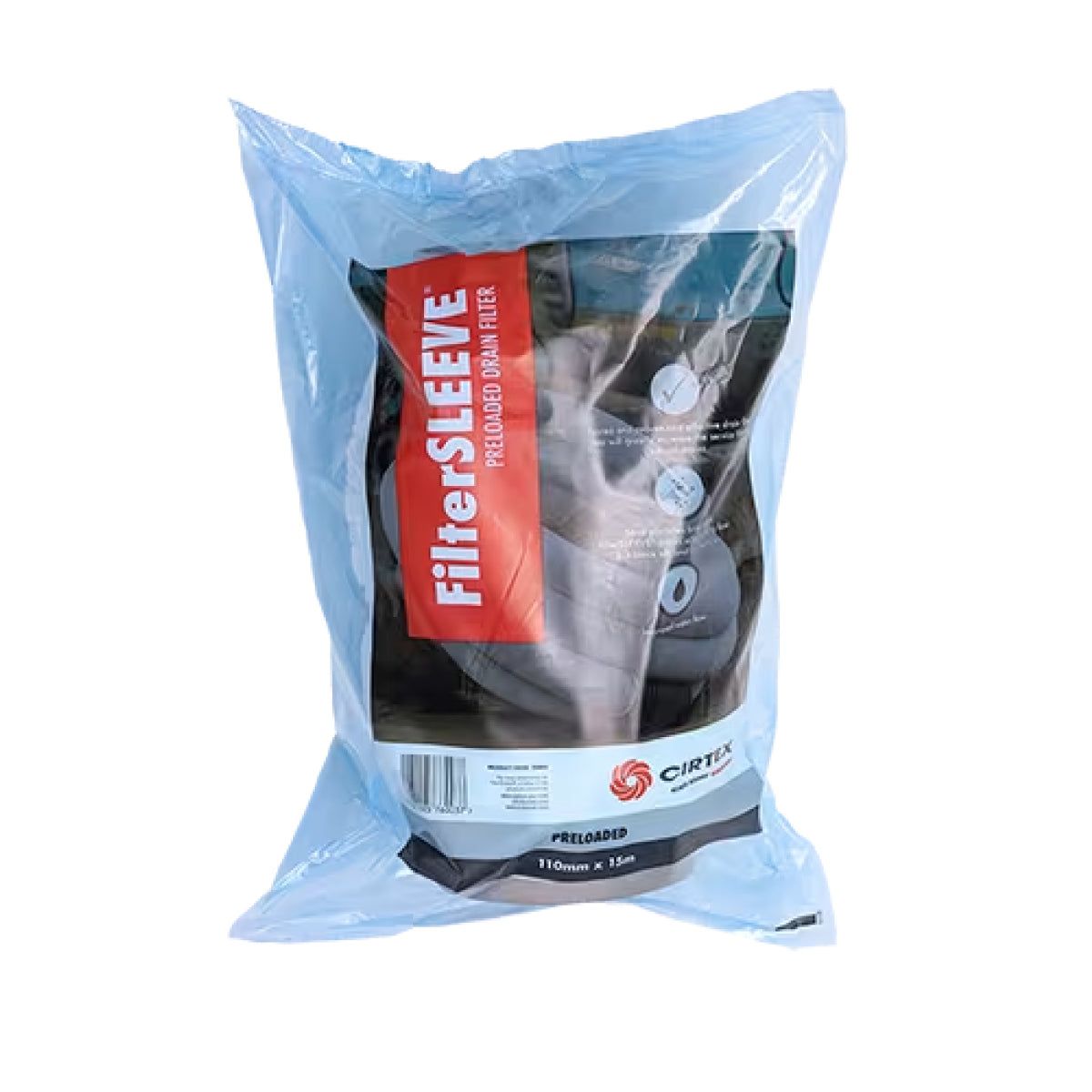

| 76006 | FilterSleeve Pre Loaded | 65mm × 15m |
| 76005 | FilterSleeve Pre Loaded | 65mm × 30m |
| 76003 | FilterSleeve Pre Loaded | 110mm × 15m |
| 76000 | FilterSleeve Pre Loaded | 110mm × 30m |
| 76002 | FilterSleeve Pre Loaded | 110mm × 100m P/L |
| 76004 | FilterSleeve Pre Loaded | 160mm × 45m P/L |
| 76001 | FilterSleeve Pre Loaded | 110mm × 50m P/L |
| 76008 | FilterSleeve | 110mm × 100m Roll |
Watch the video or download the installation guide for step-by-step instructions.
FilterSleeve | Easy install guide
It provides a filter for coarse silt/fine sandy particles which would ordinarily enter an unprotected subsoil drain.
It acts as a soil stabiliser to help support and maintain the surrounding soil and reduce the breakdown of that soil structure.
Heavier and larger sand particles are trapped by the pores of the FilterSleeve and bridge the fabric pores (as opposed to lodging in them as would ordinarily be expected).
The larger, irregular sand particles provide a further surface which can trap smaller (clay and silt) particles within their irregularities.
The air void created between the sleeve and the corrugated pipe helps to equalise pressure across the FilterSleeve fabric and provides a space into which water can pass freely before entering the pipe.
FilterSleeve helps to stabilise the surrounding soil by recreating a microscopic soil structure around the sleeve.
To protect a punched subsoil drain that is being used in sand or sandy gravels. FilterSleeve is an inexpensive insurance against failure should the contractor not achieve a perfect installation – 5-6% more expensive overall.
No – assuming that the FilterSleeve is correctly installed and backfilled, then Massey University research suggests that the permeability of the filter fabric is not significantly reduced over long periods of service.
Drainage and filtration
Soil stabilisation
100% Recycled, recyclable
UV stabilised
