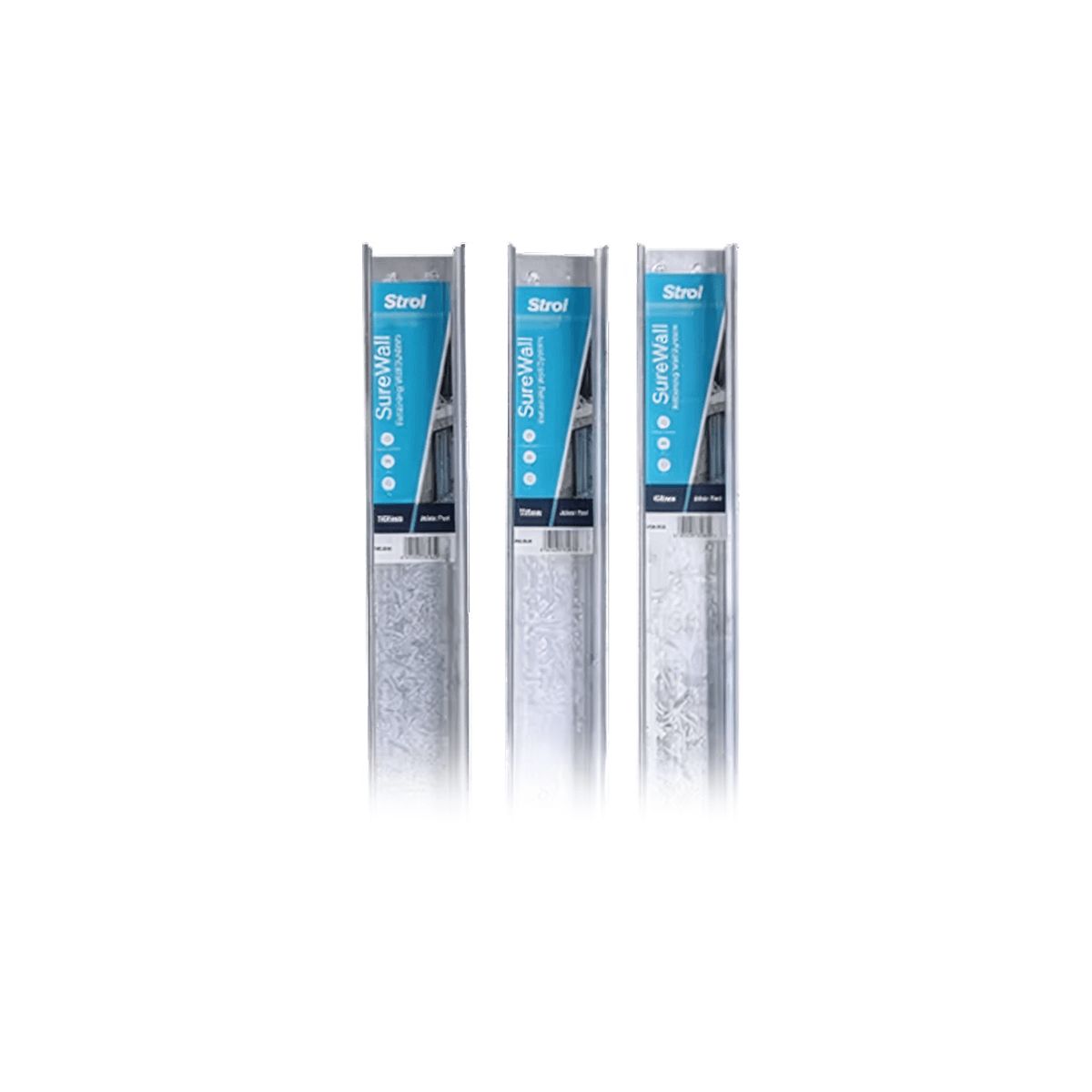

SureWall™
SureWall is a slide together system designed for the creative DIYer.
- Heavy duty, robust steel construction
- High tensile, galvanised for long life
- Build walls up to 1000mm high
- 1/3 the thickness of conventional timber retaining walls
- Material
- Galvanised Steel
- Configurations
- Joiner post / Corner Post / end post
- Use
- Timber retaining walls / garden beds
- Key Benefit
- Easy DIY installation
- Size
-
- 450mm
- 750mm
- 1100mm
- 2100mm
About SureWall™
SureWall is a slide together system designed for the creative DIYer. Not only quick and easy to install, it looks sensational! The SureWall system is the new look and way of building retaining walls. This innovative system can be used in many applications.
Create raised gardens and paths effortlessly or why not put your trampoline in-ground? Much safer for the kids and will ensure it doesn’t end up in the neighbours garden when the next storm hits!
The SureWall system offers significant labour savings due to the minimum excavation required and there is no need for fasteners, saving time and money.
One of the great features of SureWall is the flush finish creating a smart, modern, non-obtrusive wall. Building one is easier than you think! Add value and style to your property with SureWall – stylish, sophisticated, stunning!
- Material
- Galvanised Steel
- Configurations
- Joiner post / Corner Post / end post
- Use
- Timber retaining walls / garden beds
- Key Benefit
- Easy DIY installation
- Size
-
- 450mm
- 750mm
- 1100mm
- 2100mm
- Application
- Retaining walls up to 1000mm high
| Code | Product | Size |
|---|---|---|
| 76166 | Joiner Post | 450mm |
| 76167 | Joiner Post | 750mm |
| 76165 | Joiner Post | 1100mm |
| 13070 | Joiner Post | 2100mm |
| 76172 | Corner Post | 450mm |
| 76173 | Corner Post | 750mm |
| 76171 | Corner Post | 1100mm |
| 13069 | Corner Post | 2100mm |
| 76169 | End Post | 450mm |
| 76170 | End Post | 750mm |
| 76168 | End Post | 1100mm |
| 13071 | End Post | 2100mm |
-
SureWall | Retaining wall system - Overview
Any retaining wall with a surcharge would be best designed by an engineer as the load rating etc. depends as much on the soil types and other factors as well as the post strength. The SureWall Design & Strength Document which you can download from this website will assist your engineer to design the wall.
SureWall posts are made from galvanised steel and should last at least 20 years depending on your location. Expect it to last longer inland rather than coastal, as saltwater tends to corrode steel faster.
You can create perfect 90° corners. SureWall is designed with a 15° tolerance, so you can create ‘curved’ walls at special angles.
It is no problem at all to have a stepped wall. To achieve this, different height SureWall posts can be used remembering that half the length of the post needs to be underground.
Erosion control
Retaining Walls
Soil stabilisation
Raised garden beds
Drainage and filtration
