PebbleLock™
Premium gravel paving made simple. PebbleLock creates stable, permeable surfaces that combine the timeless appeal of decorative gravel with the performance needed for everyday use.
- Load rating
- 600 t/m² when filled
- Panel size
- 840mm × 590mm × 24mm
- Material
- Recycled polypropylene
- Design Life
- 20 years
About PebbleLock™
PebbleLock is a permeable paving system that locks decorative gravel and pebbles in place to create stable, low-maintenance outdoor surfaces. The interlocking panels prevent loose aggregate from shifting underfoot while allowing rainwater to drain naturally into the ground.
Ideal for residential landscaping projects, PebbleLock combines the natural look of gravel with the stability needed for everyday use. It's suitable for DIY projects and professional landscaping alike, creating durable, permeable surfaces that are easy to install and built to last.
What you can use PebbleLock for:
Garden paths
Patios and entertaining areas
Courtyards
Landscape features
Decorative garden borders
- Load rating
- 600 t/m² when filled
- Panel size
- 840mm × 590mm × 24mm
- Structure

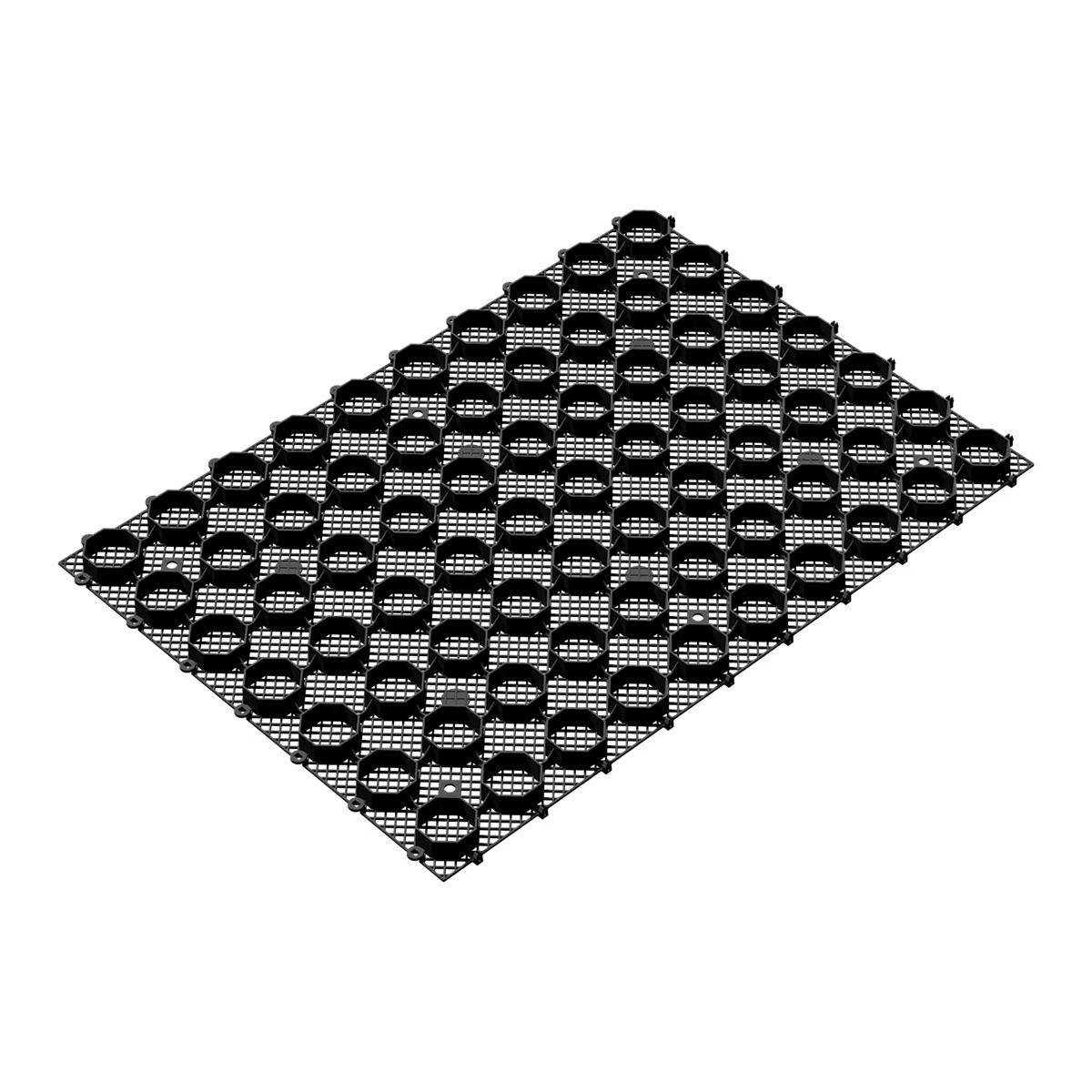

- Mesh backed open structure octagonal hollow cell paver
- Material
- Recycled polypropylene
- Design Life
- 20 years
- Coverage
- 0.5m² per panel
- Application
- Paths, patios and driveways.
- Compatible Fill
- Decorative gravel & pebbles (8–20mm)
| Code | Product | Size |
|---|---|---|
| 56403 | PebbleLock Paver BLACK | 840mm × 590mm × 24mm |
| 60304 | PebbleLock Paver White | 840mm × 590mm × 24mm |
| 60529 | PebbleLock Black 160pc Trade Pack | 80m2 |
| 61332 | PebbleLock TradePack - 100 piece | 840mm × 590mm × 24mm |
PebbleLock is designed for straightforward installation using common tools and a properly prepared base. Most residential projects can be completed by confident DIYers, while larger or commercial installations can be completed by your contractor. For full preparation details, download the installation guide or watch our step-by-step installation video.
Mark out the area, excavate to the required depth and prepare a stable, compacted sub-base suitable for your project.
Install the recommended base course and bedding layer, screeding it level to provide a smooth, even surface ready for the panels.
Clip the PebbleLock panels together across the prepared surface, working systematically to create a strong, interlocking paving system.
Fill the panels with your chosen aggregate, level the surface and your project is ready to use.
-
PebbleLock | Driveways - Full Installation
-
PebbleLock | Driveways - Easy Installation
-
PebbleLock | Paths and Patios - Easy Installation
Yes. PebbleLock is suitable for residential driveways as well as paths, patios and landscape areas. When installed over the correct base, it creates a stable gravel surface while allowing rainwater to drain naturally.
PebbleLock is compatible with a wide range of decorative gravels and pebbles between 8–20mm, allowing you to create a finish that suits your landscape design.
PebbleLock can be installed on gentle slopes when prepared correctly. For steeper gradients, follow the installation guide or contact our team for project-specific advice.
Edging is recommended around the perimeter of your PebbleLock area to help contain the aggregate and create a neat, stable finish.
Yes. PebbleLock panels can be cut to fit around curves, posts and other landscape features, making them suitable for a wide range of project shapes.
Get your project off to the right start.
Tell us what you're building and the size of your project, and CalcuPave will work out the panels, sub-base, edging and materials you need. Everything is calculated for you, giving you a clear project plan and everything you need for a successful installation.
What are you building?
Choose your surface
Your driveway dimensions
Measure length and width in metres. Not a rectangle? Split it into rectangles and type the total. A single-car driveway is roughly 3m × 5m.
Enter a measurement to continue.
Your project summary
Adjust and recalculate, no need to start over
Incompatible product
The product you were looking at does not suit this project. Here is what works instead.
Your estimated price
Here’s a list of products you might need along with the estimated prices for your project.
This estimate is incomplete.
Edging is estimated from the total area as if it were square. Enter a length and width for an exact figure.
Note: Paver prices are from Strol; aggregate, geotextile and edging prices are estimates from typical supplier rates. Edging covers the full perimeter, estimated from a square of the same area when only a total area is entered, and makes no allowance for edges that meet existing paving, the house or other structures.
